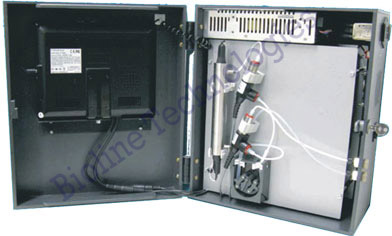

TOC Analyser

The TOC instrument uses the classical flow through concept for TOC online control. The efficient UV oxidation of organic compounds by "direct surface principle" in combination with conductivity detection guarantees the high precision of the measured values.
The automized functions of qualification allow a high standard of safety and minimized operation costs in controlling pharmaceutical water.
Operation control is achieved on the basis of windows XP embedded software.
It is an eays to use system which brings quality control at an affordable level to your lab. The TOC is a valuable accessory for all EDI and ultra pure water systems.

Calibration

Calibration can be done by the user himself. For calibration of the TOC instrument the online control mode has to be stopped and the calibration is performed.
The operator has to connect the two intels with the calibration standard solution and diluting water sample. The programmable procedure of the calibration steps will be performed automatically.
The statistical evaluation of the measurements and the corresponding calibration parameters will be shown on th escreen (plausibility test)
