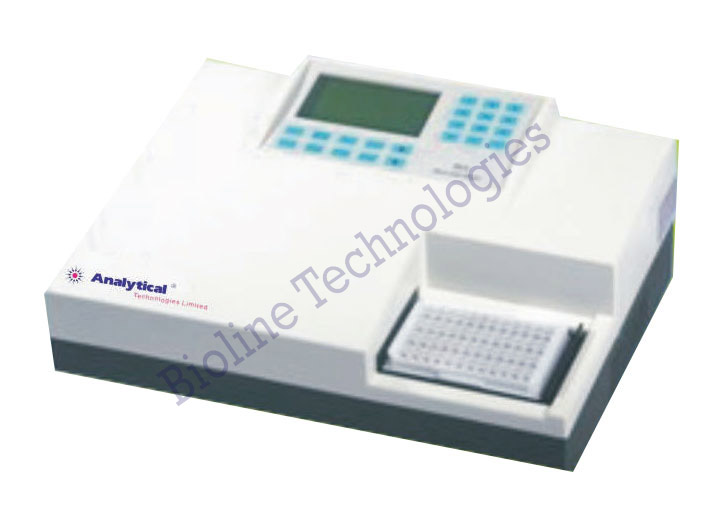

ELISA READER
ELISA plate analyzer with user friendly & sophisticated on board software . It is a stand alone system for all routine immunoassays, Biochemical’s, hormones & drug levels. Its versatile & extensive software supports most of the calculation required for interpretation of results. It is economical, reliable & high precision machine. |
Special Ffeaturers
Robust system with built –in stabilizer.
Built in shaker with variable speed & duration.
Results printing in matrix mode format.
Option to run multiple blank in Cut –off mode.
Dichromatic reading.
Ability to read from any strip in a single plate.
Extensive curve plotting.
Unique circuitry for long life of lamp.
Facility to enter clinic name.
Overload indication.
Technical Data
Human Machine Interface |
Touch Panel/Keypad |
Linear Measurement Range 0.000 to 3.500 Absorbance Unit |
0.000 to 3.500 whichever is higher ,from 0 to 1.5 A +- 3% from 1.5 to 3.5A |
Drift |
<0.005 A/hr |
Photometric Linearity |
2.5 A |
Optical Measurement |
8 channel |
Type of Filter |
Narrow band interface |
Wave length |
405nm, 450nm, 492nm, 630nm & four Optional |
Half Band width |
10nm +- 2nm |
Selection |
Automatic by stepper Motor |
Light source |
Tungsten halogen lamp,20W |
Display |
6” Graphics LCD, Negative Blue ,STN |
Curve Plotting |
2.5” Graphical Representation on printer |
plate carrier movement |
Precisely through the stepper motor |
Printer |
Built in thermal printer 52 columns |
| Memory |
Battery backup for 250 test & More than 2500results |
| Analysis Mode |
Absorbance(normal & diff.) |
| Power |
| Wattage |
75 Watts |
| Voltage |
115-230volts+-10%, 50/60Hz |
| Operating position |
On horizontal flat, rigid & vibration free surface |
Operating condition |
| Temp. |
from +18 C to 35 C |
| Relative humidity |
up to 80% |
| Storage condition |
| Temp. |
from-10 C to 40 C |
| Relative humidity |
Up to 80% |
| Enclosure |
ABS Fire Retardant |
| Size (cm) |
36 x 36 x 22(LxBxH) |
| Weight |
10kgs |
| |
|
 |

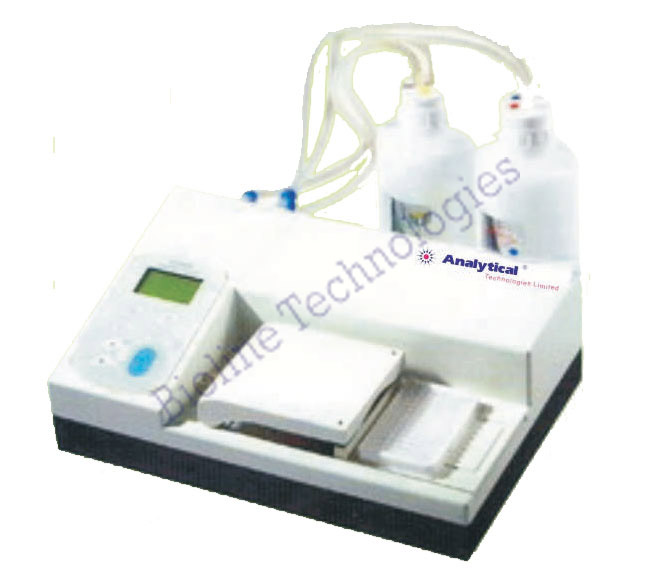

AT-2360W ELISA WASHER |
Features
> German diaphragm pump and other imported.
> Accessories makes it reliable and excellent.
> Innovative double pump design avoid any blocking
> Advanced noise reduction and vibration deduction technology in the industry
> Humanized operetion program and large mamaory presetting different wash modes
> New anti leak design eliments any inner leakage.
> Plate or strip wash for 96 well micro plates.
> Low residual volume, high speed, through clean and great efficiency.
Specification
Plate Type |
96 or 48 well plate or strip |
Reading Speed |
5 second for 96well |
Light Source |
Cold light source |
Wavelength Range |
340-750nm |
Filters |
405nm, 450nm, 492nm, 630nm, 4 open positions |
Linearity Range |
0.000~4.000ABS |
Measure Moder |
Monochromatic, Bi-chromatic |
Plate Shaking |
Time and Speed adjustable |
Display |
Touch screen, color LCD, display the whole plate information |
Memory |
More than 100 programs, 10000 test results |
Interface |
Bi-directional LIS interface |
Printer |
Built in or External Printer |
Power Supply |
AC220V/110V}10%,50/60Hz |
Volume |
440mm(L) x 305mm(W) x 154mm(H) |
| Net Weight |
7kg |
|
