   Component Centrifuge
Blood Bank Equipments



Click To Enlarge

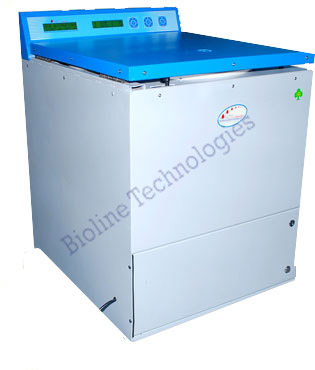

Component Centrifuge


> Microprocessor controlled and fully programmable .
> 99 programme memory.
> Maintenance free german motor germany.
> Meets all techinical guideline specified by NACO and FDA
> Models has CE accredition for electrical safety
> ISO 9001:2008 certified facility
> ISO-13485 Quality system standard for manufacturing of     medical devises



Techinincal Specification
> Heavy Duty floor model unit suitable for blood banks, biotechnology & pharma industries.
> Inner chambers made of stainless steel, easy and outer will be MS corrosion free powder quoted epoxy PU pain    having both drain & considensed water collection container.
> Maximum speed control up to 4200 rpm with 10 rpm increment and rcf 6150 x g adjustable at 1 g step.
> Temperature cintrol range -20 degree C to 40 degree C having working range -8 deg C to 20 deg C with     temperature adjustment in 1 deg C interval regardless of the centrifuges speed.
> Maximum temp at Max RCF -5 deg C.
> Maximum volume 6 or 12 quadruple blood bags for the preparation of [packed cells, platelet concentrates and    FFP using triple bags with or without additive solution.
> Size - W 850 X D 960 X H 970mm and weight 280 kgs for model JAR-701
